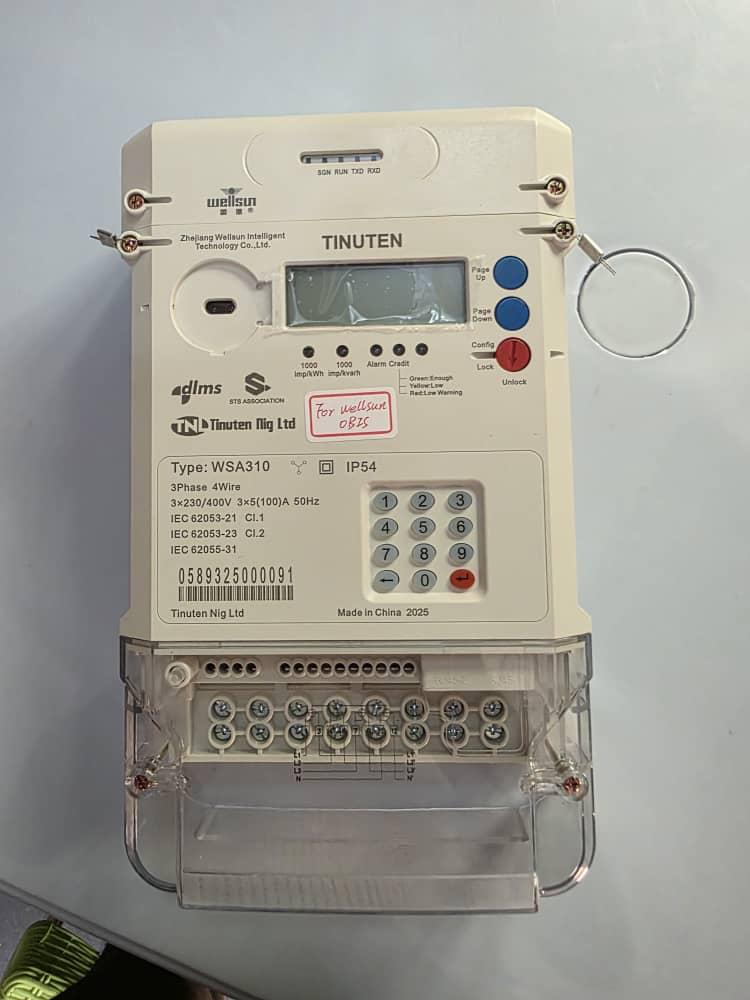

Three Phase Smart STS Prepayment Energy Meter
Original price was: ₦240,000.00.₦235,000.00Current price is: ₦235,000.00.
|
Product Name:
|
3 Phase Electric Prepayment Meter
|
Standard:
|
IEC62053, DLMS
|
|
Dimensions:
|
265x170x77mm
|
Weight:
|
2.5kg
|
|
Communication:
|
GSM GPRS Ethernet
|
Accuracy:
|
Class 1s
|
|
Com Port:
|
Optical RS485
|
Bore Diameter:
|
10mm
|
Three phase energy meters, 3 phase kwh meter, STS 3 Phase Electric Meter
|
Product Name:
|
3 Phase Electric Prepayment Meter
|
Standard:
|
IEC62053, DLMS
|
|
Dimensions:
|
265x170x77mm
|
Weight:
|
2.5kg
|
|
Communication:
|
GSM GPRS Ethernet
|
Accuracy:
|
Class 1s
|
|
Com Port:
|
Optical RS485
|
Bore Diameter:
|
10mm
|
STS Commercial 3 Phase Electric Meter , Prepayment Electricity Meters
The CA368-G is a GSM / GPRS operated three phase four wire electric smart meter for light commercial and industrial metering applications. It supports state-of-art high profile real-time data collection as well as classic metering functions. The meter records four-quadrant load profile at preset intervals and operates in prepayment and post payment mode as per command from the head-end server station.
The meter is produced by ISO9001 standards and operates in very harsh outdoors and indoors environments , owing to its wide range ( Un -40% +20%) of voltage with RF immunity of 30V/m. The CA368-G series is also intended for measurement of both active and reactive energy. A 2400 bps baud rate optical port for data interogation is a standard spec of entire series..
The GSM / GPRS functions of CA368-G allows the meter to interact with the head-end server in a two-way communication via TCP/IP or vpn through local point-to-point GSM / GPRS networks. This setup is making installation and fitting simpler and faster. A utility or service provider can remotely read and collect metering data by setting scheduled task with head-end server station. Local information can be toggled up to show by punching in different codes..
Main Features
1) Built for both direct connection and CT connection type
2) Operate in prepayment and credit mode
3) Load Profile record at adjustable intervals
4) Maximum demand and load profiling record
5) Tamper protection, magnetic immunity, data retention in power failure, cover open detection
6) Multi-rate and multi billing cycles, Time of Use tariff management
7) IEC 62056-21 and DLMS/COSEM compliant
Key benefits
a) Provide full house instantaneous metering data as KW, V, A, PF measurable
b) Reduce operational and managementcost
c) Real-time monitoring online
d) Revenue protection by flexible consumer contractual control
e) Build in load switch allows for load management on demand and remote
f) Long life time design
Specifications:
| Electrical parameters | |
|---|---|
| Nominal voltage Un | 3×220/230/240V |
| Limited voltage | 60%~120%Un |
| Frequency | 50/60Hz+5% |
| Basic current(Ib) | 10A |
| Maximum current(Imax) | 100A |
| Starting current(Ist) | 30mA |
| Active energy constant | 400imp/kWh |
| Accuracy | |
| Active energy to IEC62053‐21 | Class1.0 |
| Reactive energy to IEC62053‐23 | Class2.0 |
| Power Consumption | |
| Power consumption in Voltage circuit | <2W <8VA |
| Power consumption in current circuit | <1VA |
| Temperature range | |
| Operation meter | 25℃ to+70℃ |
| Storage | 40℃ to+85℃ |
| Insulation strength | |
| AC Insulation strength | 4kV at 50Hz during 1min |
| Impulse voltage 1.2/50μs mains connections | 8kV |
| Electro Magnetic Compatibility | |
| Electrostatic discharges | |
| Contact discharge | 8kV |
| Air discharge | 16kV |
| Electromagnetic RF fields | |
| 27MHz to 500MHz typical | 10V/m |
| 100kHz to 1GHz typical | 30V/m |
| Fast transient burst test | 4kV |
| Mechanical requirements | |
| Protection Rating | IP54 |
| Insulation Classification | Protective Class II |
| Maximum cable size | 10 mm |
